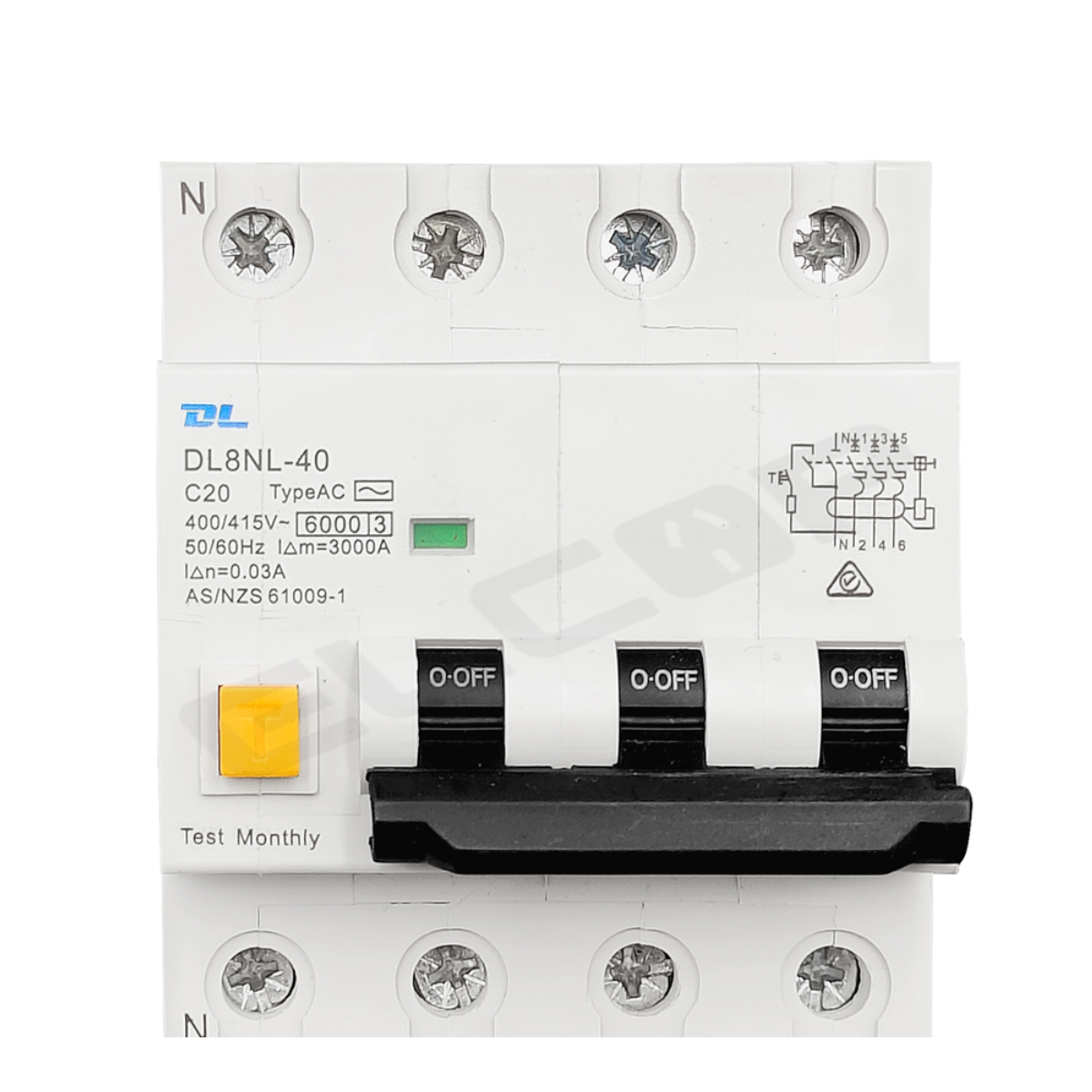

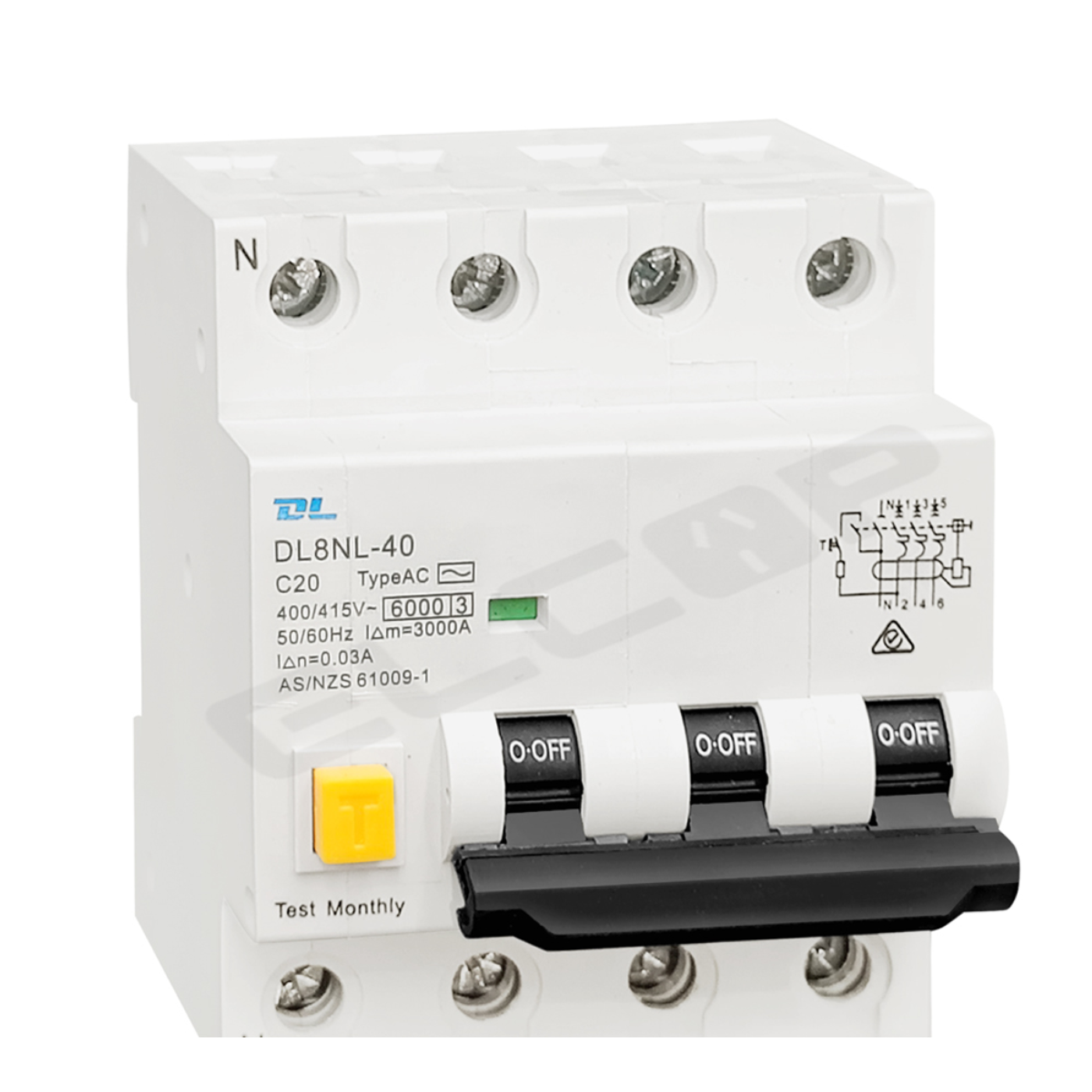

The 4 Pole 20A 30mA, 6kA, 400/440V RCBO Combo Type A | DL: This DL 4 Pole 20amp RCBO is the perfect safety switch for three phase installations. It offers 6kA protection, a 30mA RCD, and a 400/440V C Curve MCB all in one compact solution. Perfect for commercial and residential applications, it will protect property and life from current leakage to earth. It also features an inbuilt test switch and is easily reset after fault rectification.

  • Number of modules: 4.
  • Number of poles: 4 P.
  • 6kA.
  • Type A.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 20 A.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • Number of modules: 4.
  • Number of poles: 4 P.
  • 6kA.
  • Type A.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 20 A.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • SKU DL8NL40C20
    Shipping Weight 0.8000kg
