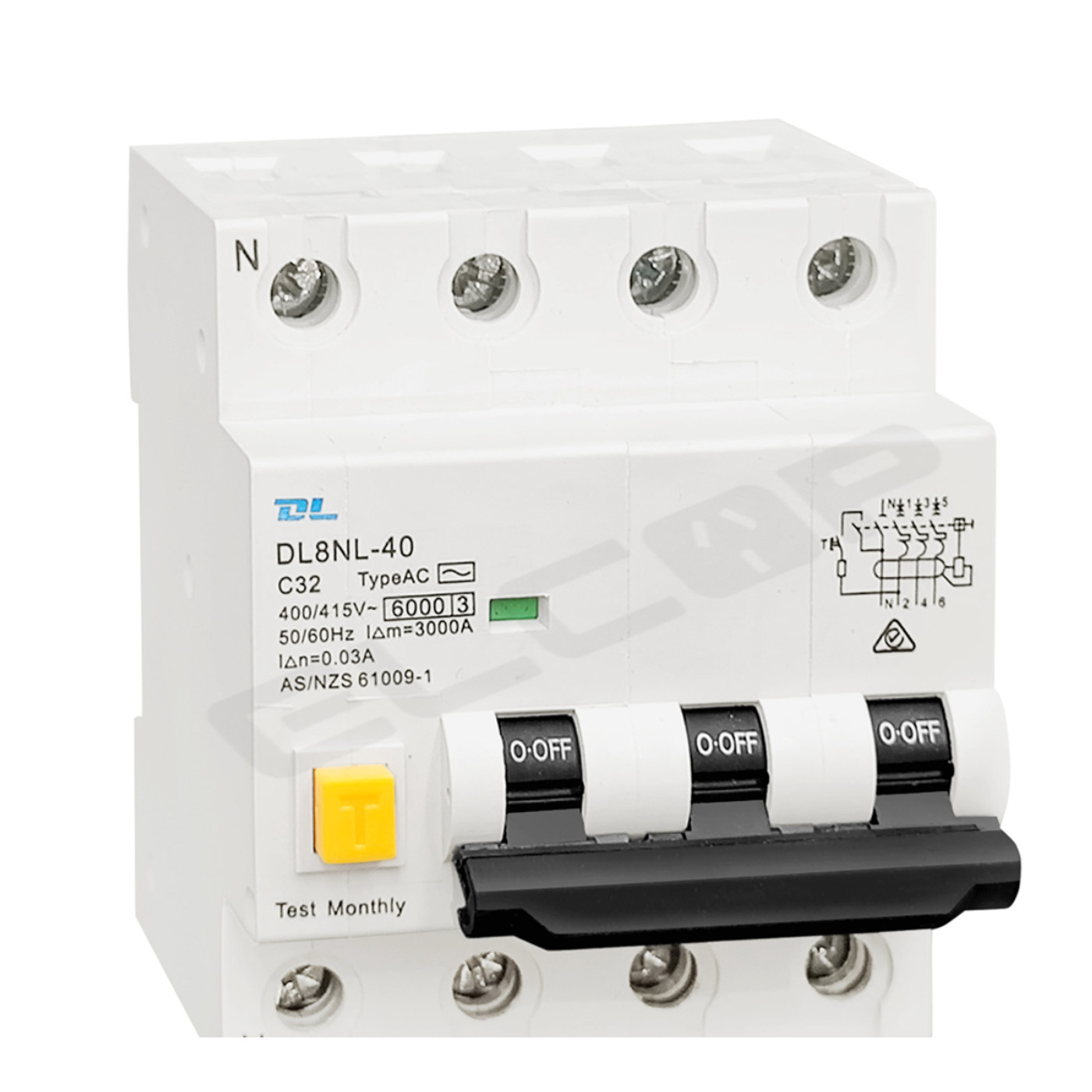

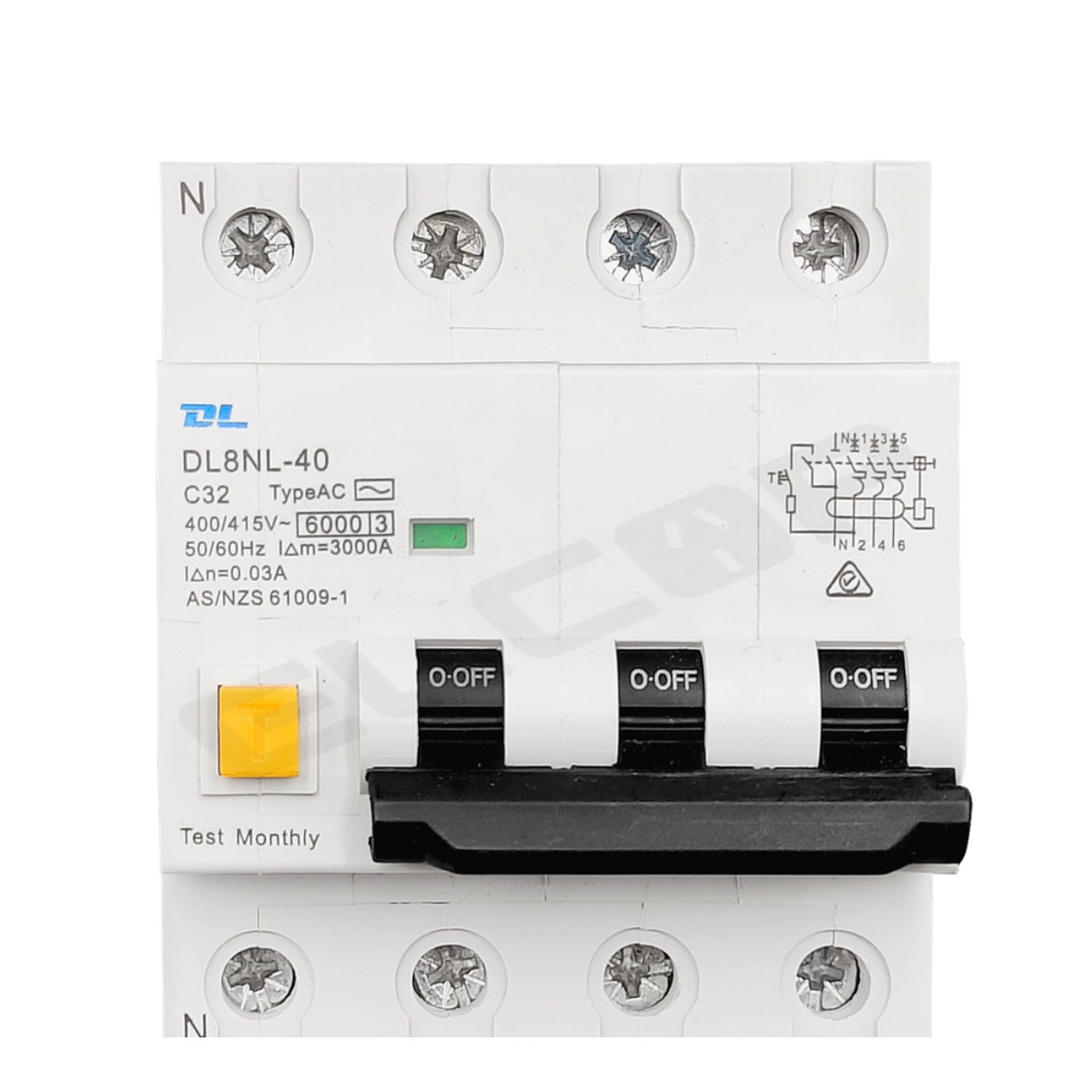

This 4 Pole 32A 30mA, 6kA, 400/440V RCBO Combo Type A | DL: This DL 4 Pole 32amp RCBO is the perfect safety switch for three phase installations. It offers 6kA protection, 400/440V rating and a 30mA RCD MCB combo. It's ideal for commercial and residential applications, providing reliable protection against current leakage to earth. It has an inbuilt test switch and is easily reset after fault rectification. Get the ultimate protection for your property and life with this compact solution.

  • Number of modules: 4.
  • Number of poles: 4 P.
  • Type A.
  • 6kA.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 32 A.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • Number of modules: 4.
  • Number of poles: 4 P.
  • Type A.
  • 6kA.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 32 A.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • SKU DL8NL40C32
    Shipping Weight 0.8000kg
