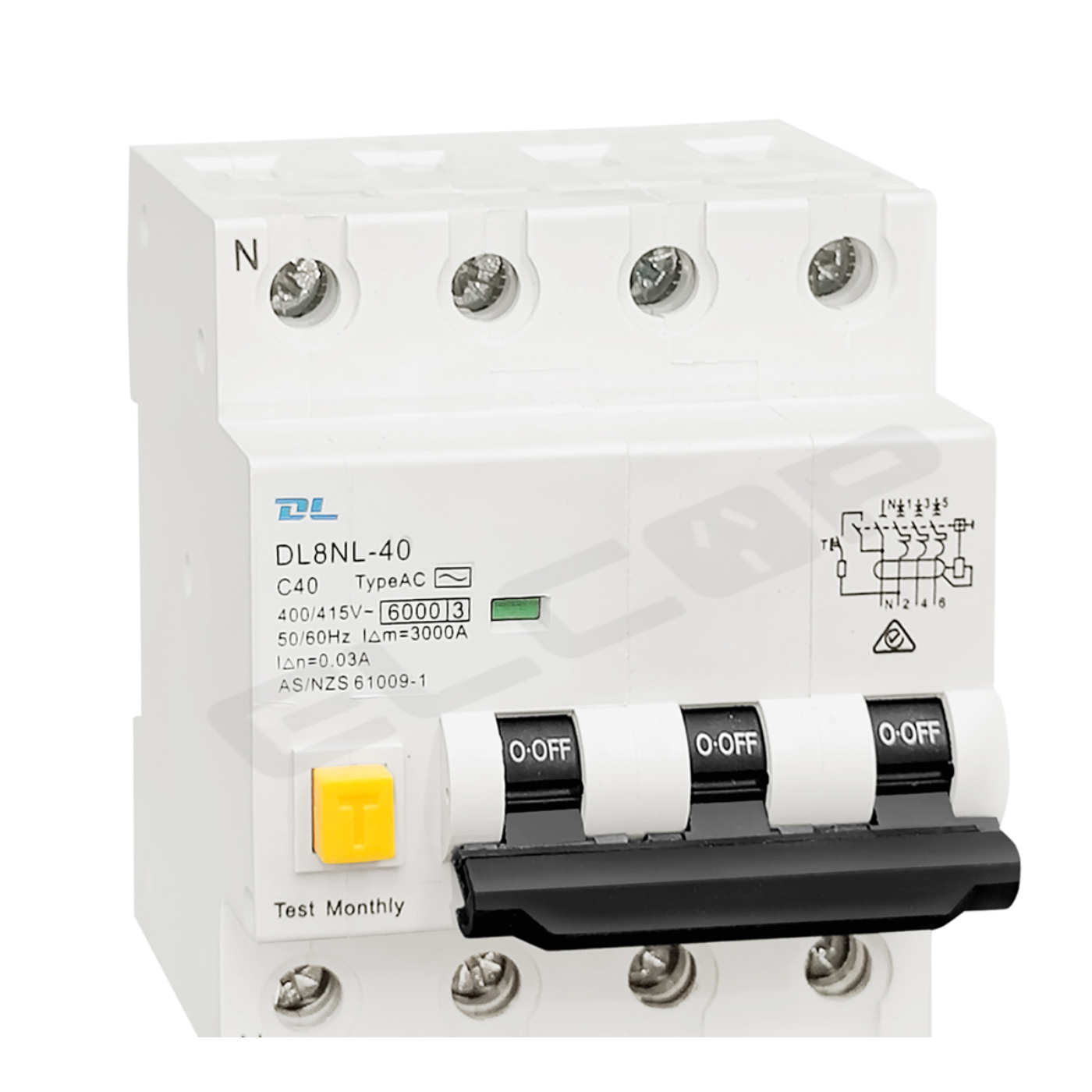

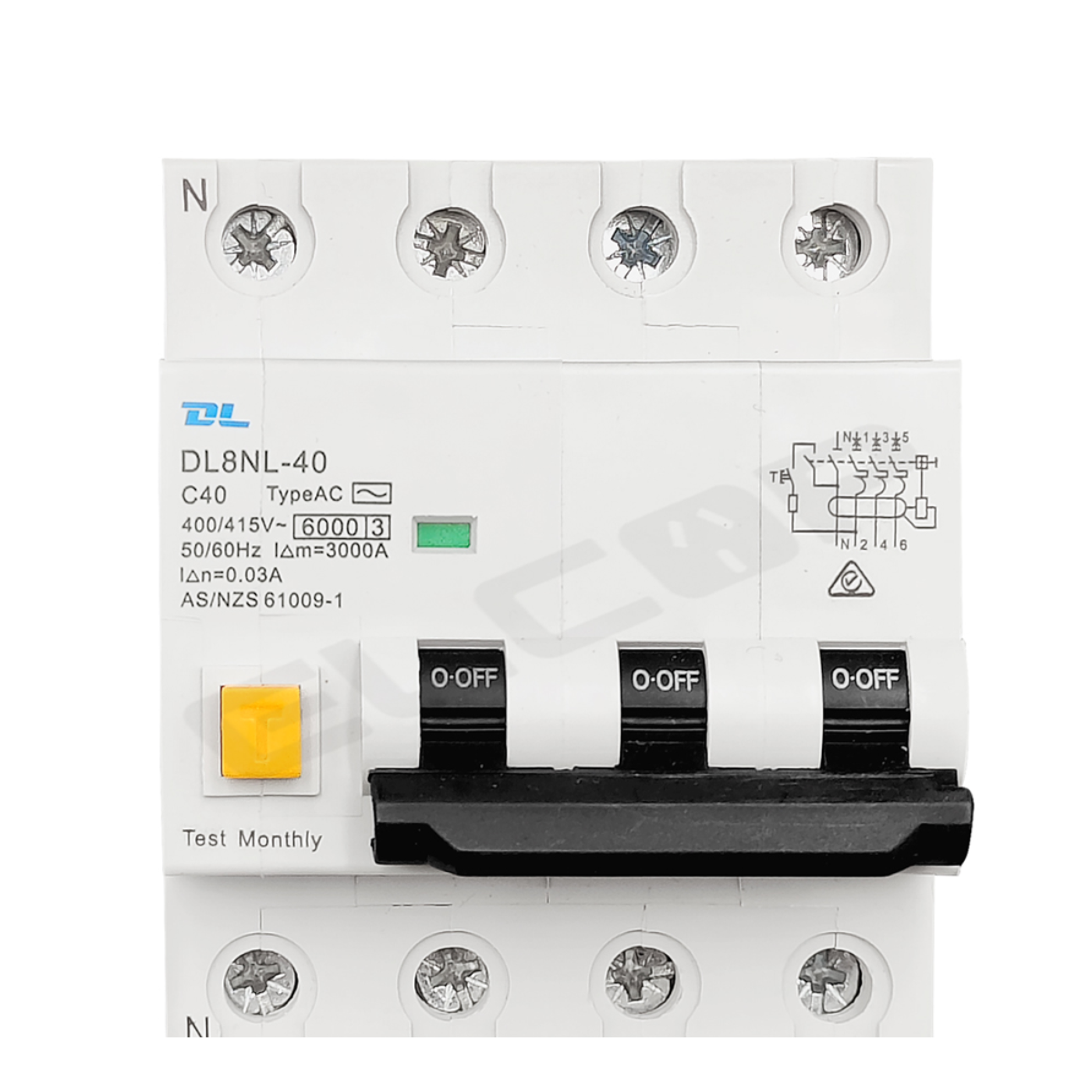

Introducing the 4 Pole 40A 30mA, 6kA, 400/440V RCBO Combo Type A | DL: This DL 4 Pole 40amp RCBO is the perfect safety switch for three phase installations. It offers 6kA protection, a 30mA RCD, and a 400/440V C Curve. It's ideal for commercial and residential applications, and its inbuilt test switch and easy reset make it a great choice for protecting property and life.

  • Number of modules: 4.
  • Number of poles: 4 P.
  • Type A.
  • 6kA.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 40æA.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • Number of modules: 4.
  • Number of poles: 4 P.
  • Type A.
  • 6kA.
  • Rated short circuit breaking capacity Icn AC according IEC60898-1: 6 kA.
  • Curve: C.
  • Rated operational voltage Ue: 240415 V.
  • Rated current: 40æA.
  • Rated residual operating current: 30 mA.
  • Residual current type: A.
  • Frequency: 50 Hz.
  • Rated insulation voltage: 500 V.
  • Operating temperature: -25 to 40 ÁC.
  • Fixing mode: Din-Rail.
  • Terminals suitable for up to 25mm Cable.
  • Lockable Toggle.
  • Polarity Sensitive.
  • SKU DL8NL40C40
    Shipping Weight 0.8000kg
